WINEA MAXX Modular Shelving Unit
Room Divider and Storage Space
Stellwände als Zonierung
frei stehend im Raum
Akustisch wirksame Deckenabhängung im offenen Büro
Akustikpaneele mit direkter
Tischanbindung zur akustischen
und visuellen Abschirmung des
Arbeitsplatzes
Abschirmung und
Organisationselement
direkt am Platz
WINI room dividers organize open-plan office spaces into zones for focused work, meetings, and communication. The product line includes the WINEA X, WINEA SONIC, WINEA SINUS, and WINEA FLEX UP partition and panel systems, space-dividing shelving such as the WINEA MAXX modular shelving unit, and acrylic glass hygiene partitions.

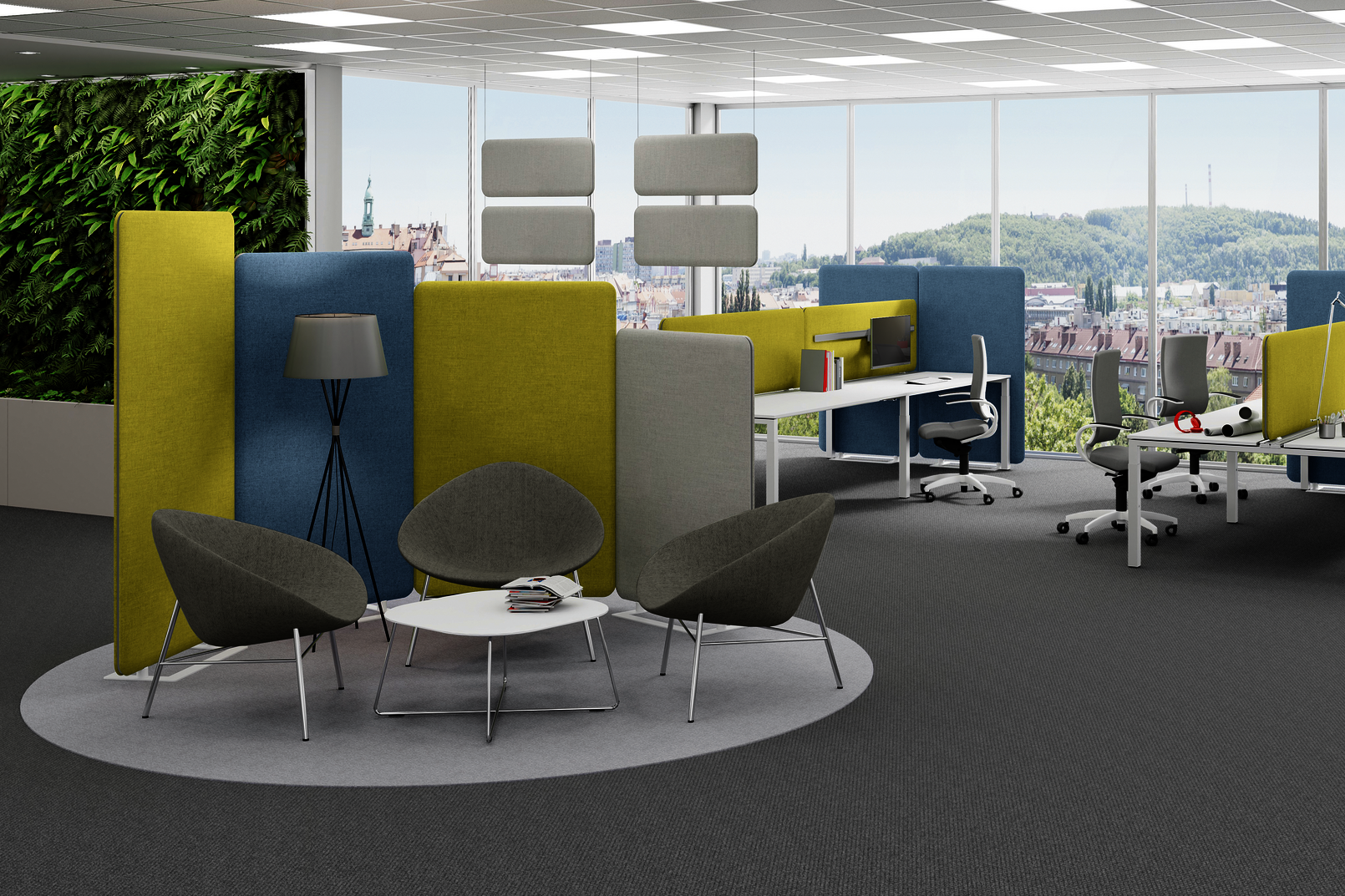

Depending on the system, the room dividers can be freestanding, mounted on or behind a desk, suspended from the ceiling, or attached to the wall. WINEA SONIC is also available with casters, allowing it to be moved around the space.
Acoustically effective room dividers dampen conversations and phone calls in open-plan offices: WINEA SONIC panels are available in 52 mm thickness with absorption class B and in 35 mm thickness with absorption class C. You can configure the shape, dimensions, design, finish, and color within the system—using the WINI Configurator or in collaboration with your WINI authorized dealer.
For commercial customers, WINI provides a 10-year long-term warranty as well as a 10-year backorder guarantee in accordance with the WINI Warranty Statement.
WINI room systems differ in design, installation, and acoustic performance. The overview shows the key specifications of the individual room dividers—from table panels to freestanding shelving units.
| System | Design and Installation | Key Specifications |
| WINEA X | Partition and panel system; can be used as a partition, on or behind a table, or as a ceiling panel | 25 mm core board, over 50 colors, three covering options, partitions can be linked using X-connectors |
| WINEA SONIC | Acoustic partition, freestanding, on a roll, on or behind a table, or as a ceiling-mounted panel | Partition wall available in 5 heights (2.5 to 5 file-folder heights) and 10 widths (40 to 200 cm); table panel available in 3 heights (39.1 to 58.3 cm), 52 mm (absorption class B) or 35 mm (absorption class C) |
| WINEA SINUS | Acoustic system with aluminum frame, suspended, on or behind the table, as a partition or wall panel | Basic elements in 10 widths (40 to 200 cm) and 5 heights (100.5 to 196.5 cm), angle positions 90°, 120°, and 135°, printable stretch fabric |
| WINEA FLEX UP | Panels made of polyester nonwoven fabric, as a partition, table skirt, add-on wall, wall element, or ceiling suspension | 10 or 25 mm material thickness, custom shapes and designs, pin-friendly, partitions can be linked linearly, at a 90° angle, or in a T- or X-configuration, available in many colors |
| WINEA MAXX modular shelving | Shelving system, as a shelving wall or freestanding island | Module widths: 400, 600, and 800 mm; module depths: 320 and 450 mm; shelves: 19 mm thick with a load capacity of up to 24 kg; optionally available with planters |
| Hygiene Partitions | Protective partitions made of acrylic glass, freely positionable and movable | 5 mm acrylic glass, round or square design |
WINEA SONIC desk panels are available in 3 heights ranging from 39.1 to 58.3 cm and 9 widths ranging from 60 to 200 cm. WINEA X can be securely attached to the desk using the function rail, while WINEA FLEX UP is a freely positionable desk panel mounted on cork feet and can also be attached to the side or behind the desk top.
WINI offers room dividers in three designs: partition wall and panel systems (WINEA X, WINEA SONIC, WINEA SINUS, WINEA FLEX UP), room-dividing shelving units (WINEA MAXX modular shelving, WINEA MAXX tubular shelving), and acrylic glass hygiene partitions. WINEA SONIC and WINEA SINUS also function as acoustic systems that reduce noise levels in the room.
You can customize WINI room dividers within the system in terms of shape, dimensions, design, finish, and color—either using the WINI Configurator or in collaboration with your WINI authorized dealer. Available options include freestanding partitions, panels mounted on or behind a table, table attachments, and ceiling-mounted units; custom shapes and made-to-measure solutions are available through WINI Customizing.
Acoustically effective room dividers such as WINEA SONIC and WINEA SINUS are filled with sound-absorbing material, dampen conversations and phone calls, and reduce reflections. WINEA SONIC panels achieve absorption class B at a thickness of 52 mm and absorption class C at 35 mm—creating quieter zones for focused work in large and open-plan offices.
WINI offers desk panels and add-on panels for desks: WINEA SONIC desk panels are available in 3 heights ranging from 39.1 to 58.3 cm and 9 widths ranging from 60 to 200 cm, WINEA X can be securely attached to the desk using the function rail, and WINEA FLEX UP is a freely positionable desk panel on cork feet or can be mounted on the sides and behind the tabletop. Panels mounted behind the table provide additional screening for Duo and Bench workstations.
These terms are largely used interchangeably. “Room dividers” and “space dividers” usually refer to freestanding or mobile elements used to zone open spaces, while “partition walls” tend to refer to fixed, often floor-to-ceiling systems; “space systems” is also commonly used as an umbrella term. WINI room dividers are modular furniture systems—freestanding, attached to a table, mounted on a wall, or suspended from the ceiling.
WINI room dividers have a modular design and can be rearranged, expanded, and reconfigured. WINEA SONIC is available with casters; WINEA X partitions can be connected using the X-connector; WINEA FLEX UP partitions can be arranged in a straight line, at a 90° angle, or in a T- or X-configuration—allowing you to adapt the space for meetings, training sessions, or temporary teamwork.
The WINEA MAXX modular shelving system can be combined with planters to organize open spaces while adding greenery. The WINEA SLIM storage unit is also available with an optional planter attachment.
For commercial customers, WINI offers a 10-year long-term warranty as well as a 10-year replacement guarantee in accordance with the WINI Warranty Statement—providing long-term investment and planning security. According to the Warranty Statement, fabrics and finishes, among other items, are excluded from the replacement guarantee.
