Fire Extinguisher Decorative Cover – Integrating Fire Safety into Interior Design
Red fire extinguishers are required—but they don’t have to dominate your space. The WINI Fire Extinguisher Design Cover—often referred to simply as a fire extinguisher cover in everyday use—seamlessly integrates this mandatory safety item into your interior design. Full functionality. No longer a visual distraction. For work environments where safety and design go hand in hand.
Clear wayfinding, a neat and orderly appearance
A red fire extinguisher isn’t just an optional detail—it’s required by law. And it stands out. In the entrance area, in the hallway, in the conference room: that red object on the wall clashes with a well-thought-out interior design.
The fire extinguisher design cover meets these requirements: It clearly marks the fire extinguisher’s location, keeps the area clear, and at the same time reduces visual clutter. The sturdy metal housing is designed for long-term use—ideal for hallways, lobbies, offices, and conference areas.

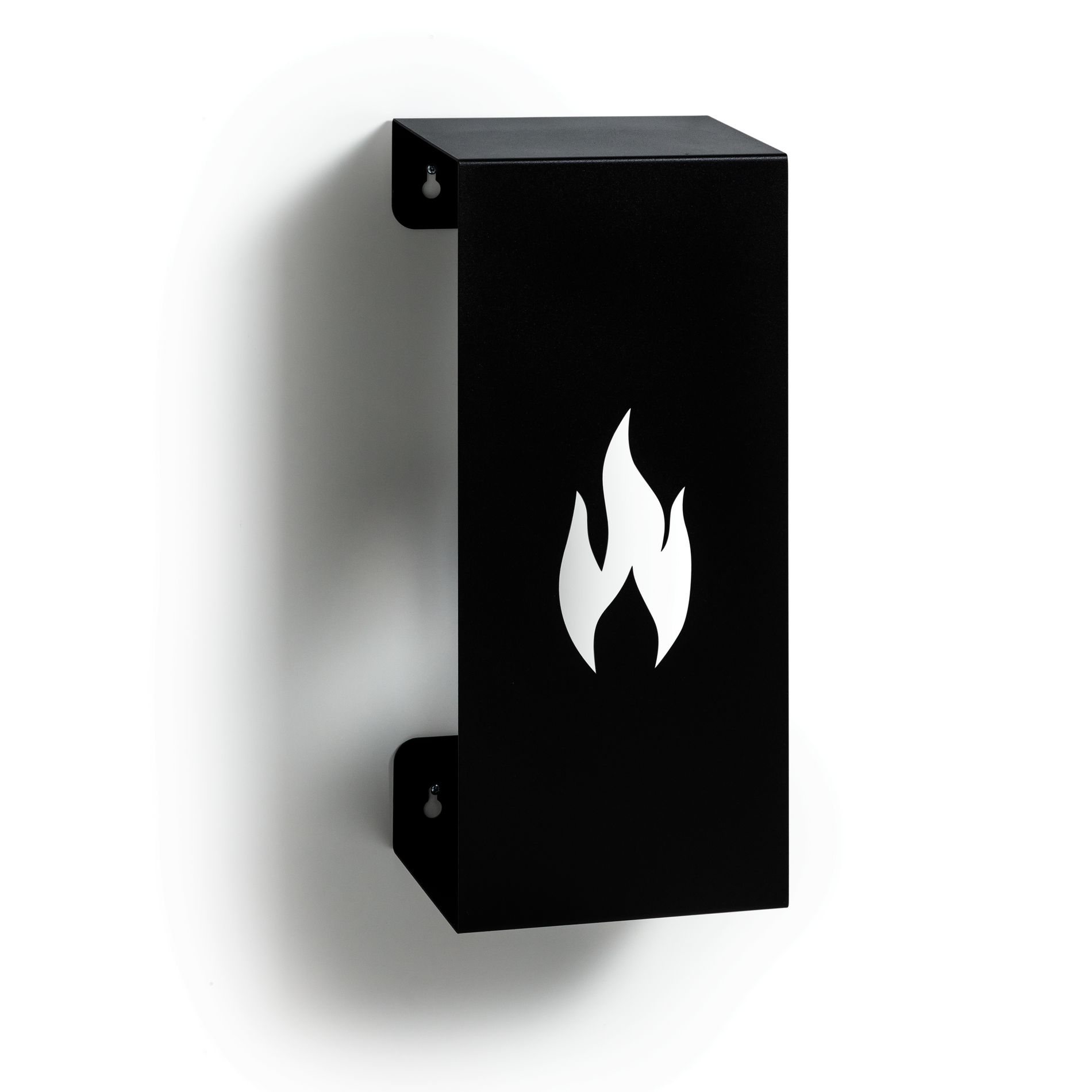

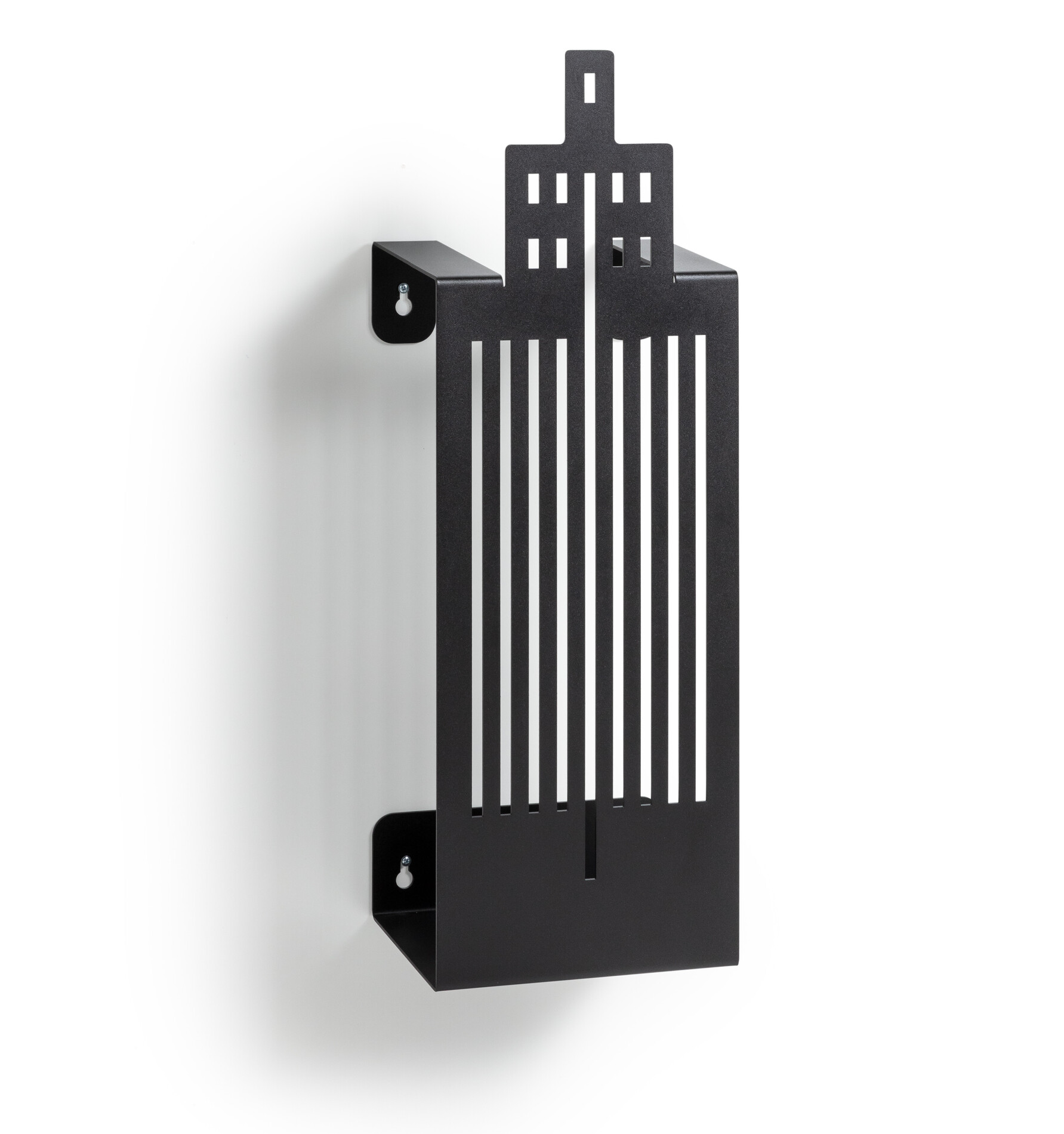

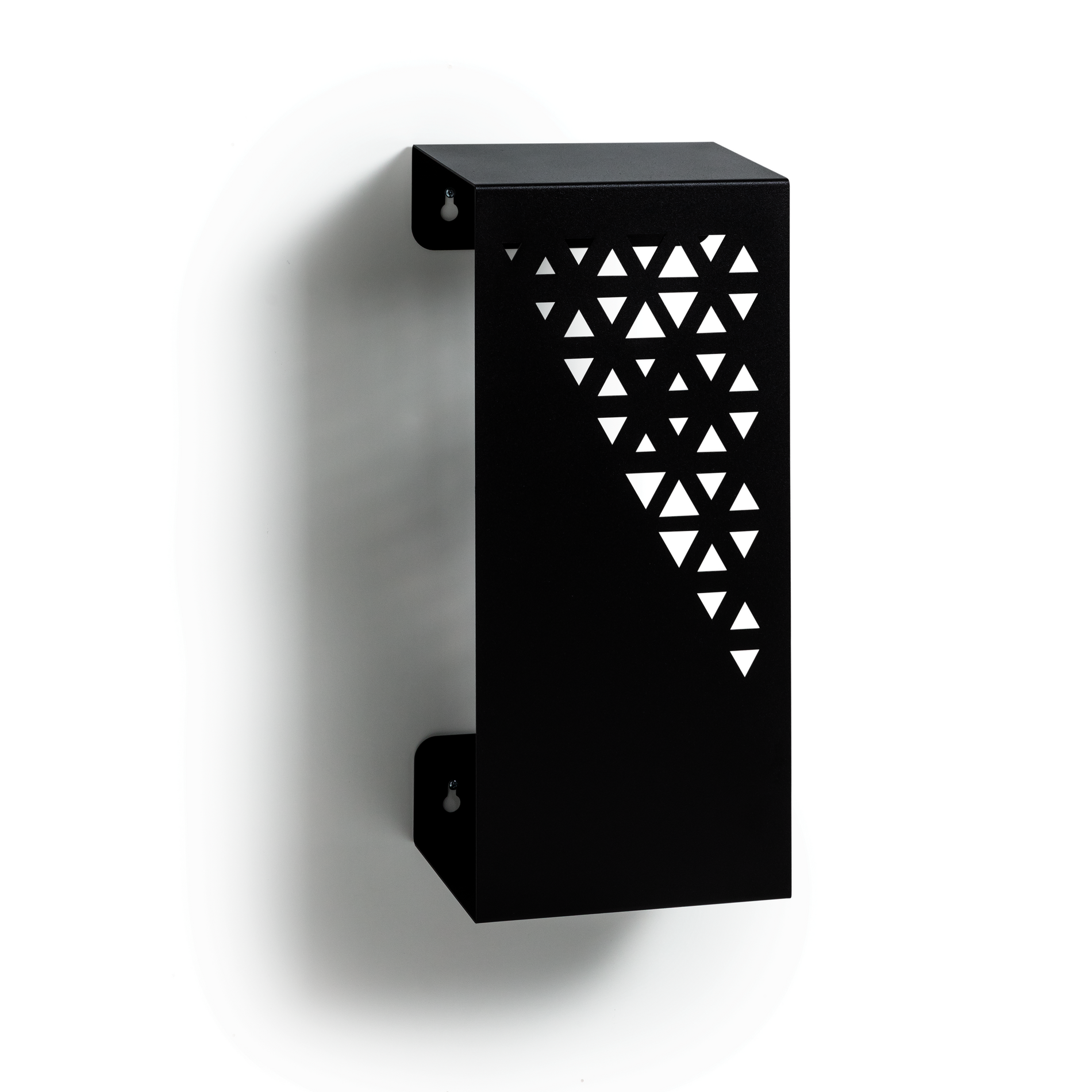

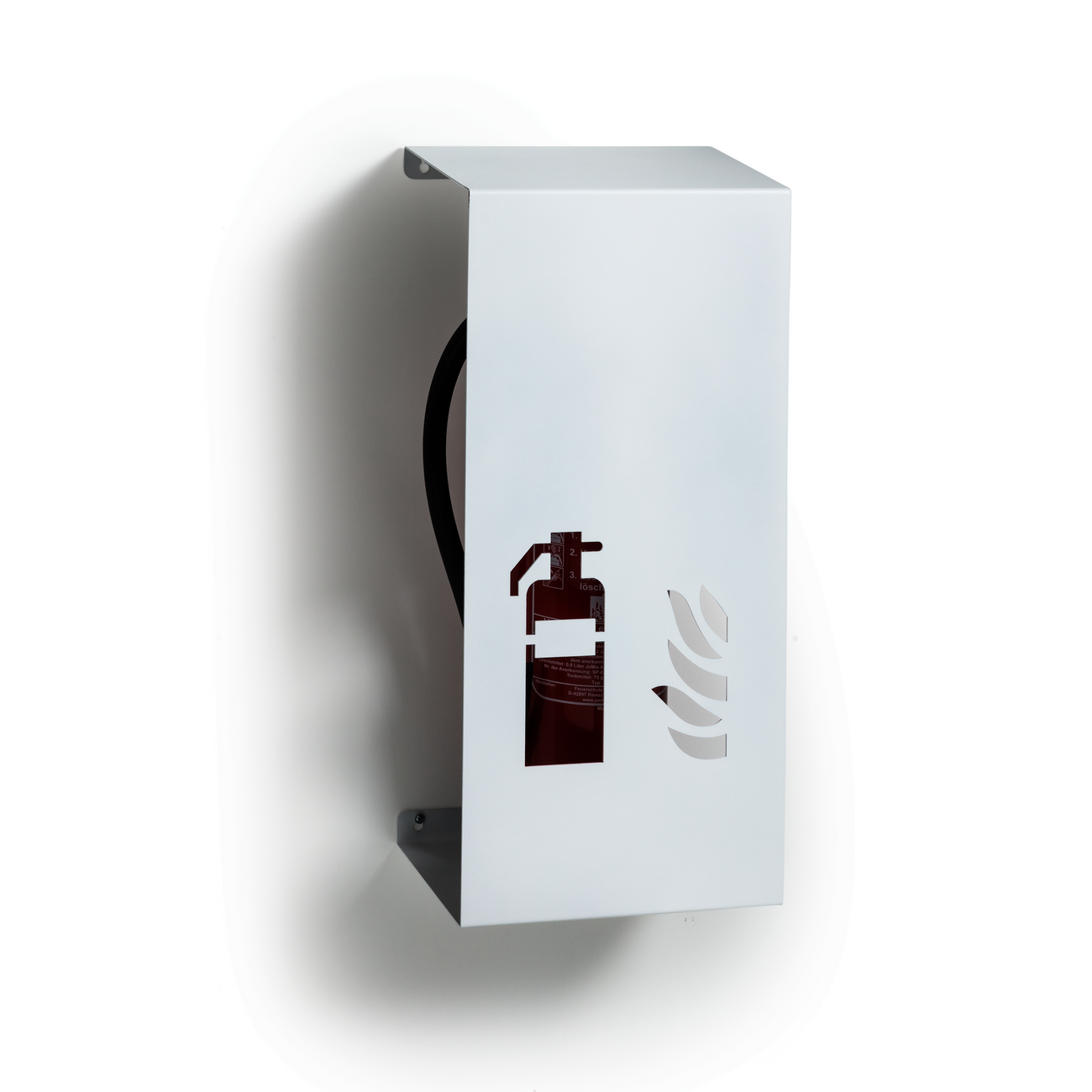

The WINI fire extinguisher design cover is available in three customizable designs: “Flame,” “House,” and “Pattern.” Using the WINI Configurator, you can select the right design to match your room’s decor. In addition, WINI Customizing offers tailor-made, customer-specific solutions for special requirements.

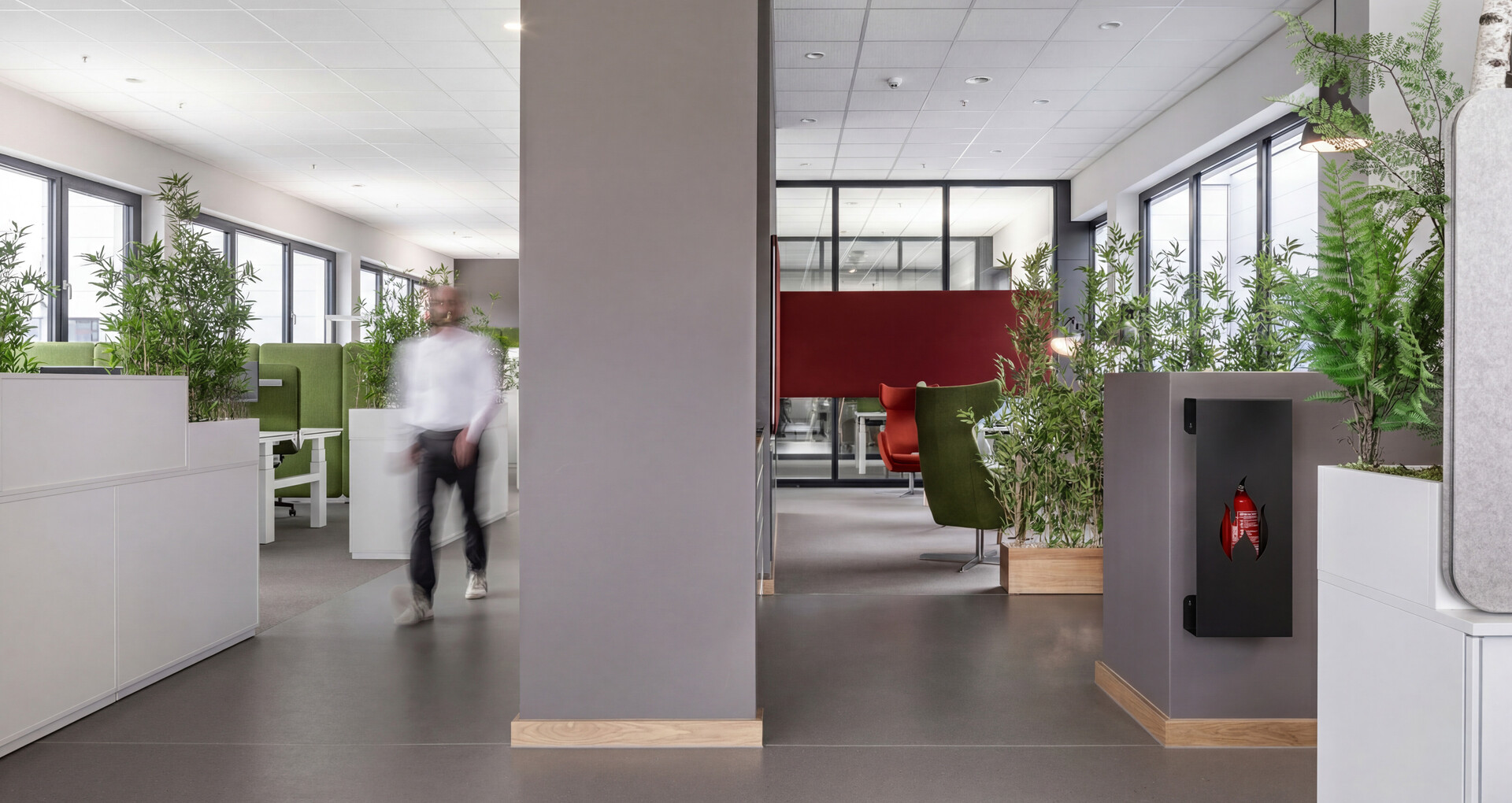

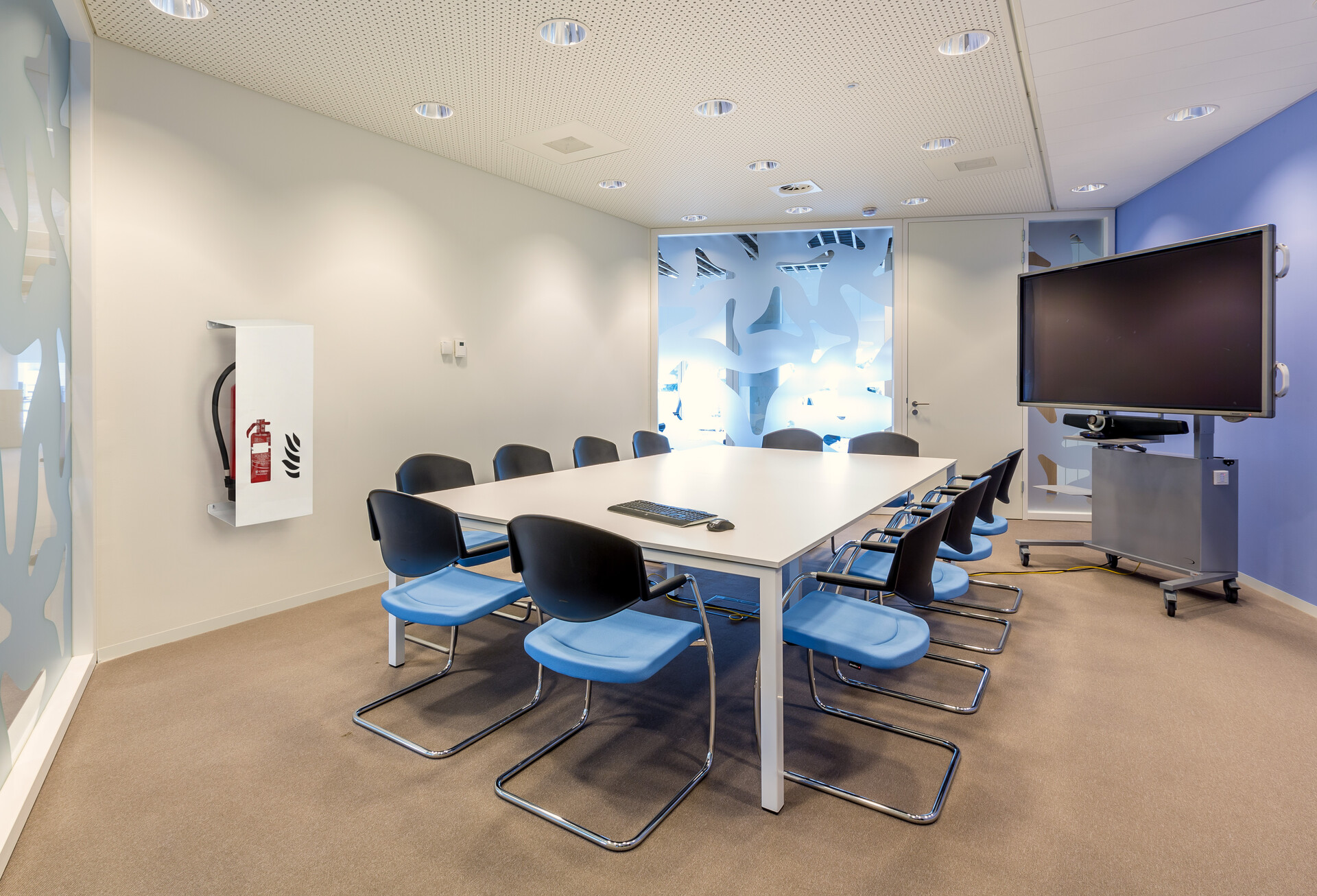

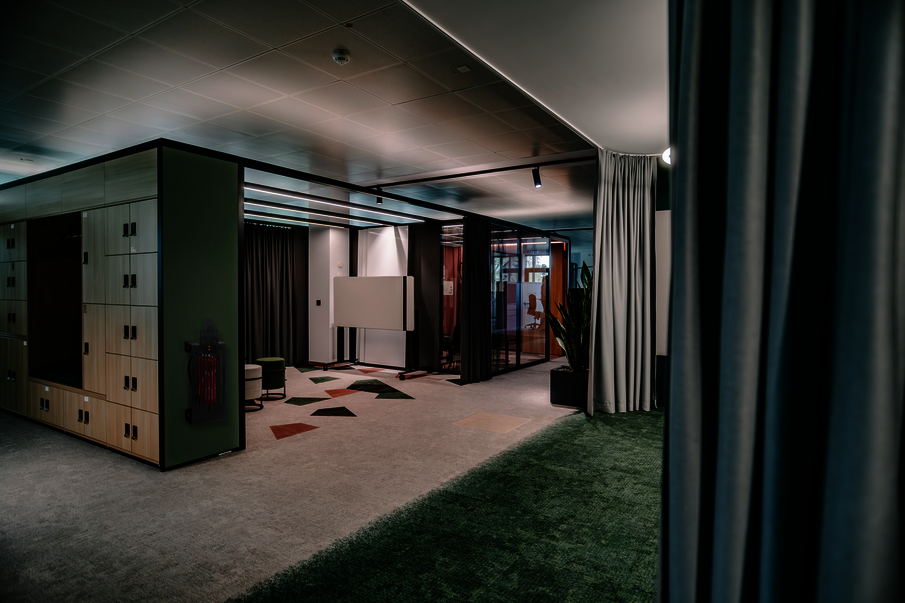

The WINI Fire Extinguisher Design Cover is suitable for all commercial indoor areas where a polished overall appearance is important: office hallways, lobbies and reception areas, conference and meeting rooms, as well as open workspaces. The sturdy metal housing is designed for long-term use in office and commercial settings.
The WINI fire extinguisher design cover has external dimensions of 600 mm in height, 270 mm in width, and 179 mm in depth, with a net weight of approximately 5.71 kg. The usable interior space (597 × 265 × 176.5 mm) is designed to accommodate standard fire extinguishers with a capacity of 6 kg or 6 liters; larger CO₂ extinguishers do not fit due to their design.
Yes—under two conditions. The Technical Rule for Workplaces (ASR A2.2) requires that fire extinguishers be clearly visible, easily accessible, and able to be removed from their mountings without difficulty (Section 5.3). It explicitly lists protective covers and cabinets as permissible protective measures—therefore, a cover is generally permitted.

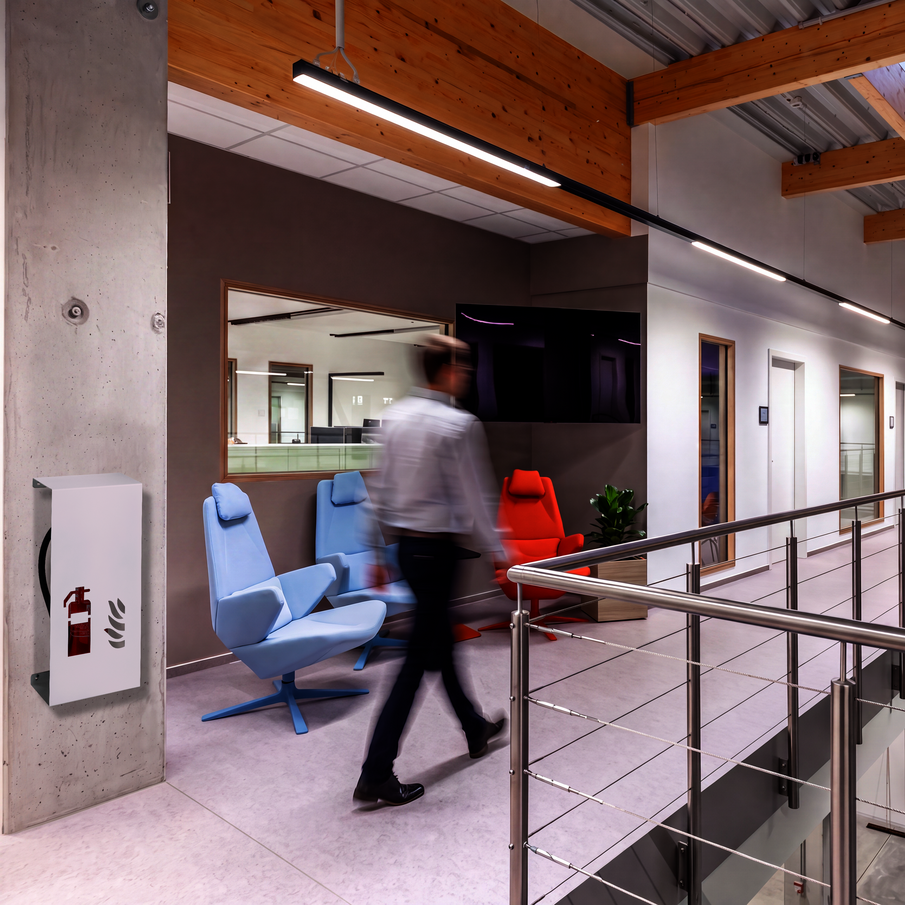

The prerequisites are, first, that the fire extinguisher remains quickly accessible at all times, and second, that its location is marked with the fire safety symbol F001 in accordance with ASR A1.3. The WINI Fire Extinguisher Design Cover is open on the sides and immediately exposes the fire extinguisher; the fire safety symbol F001 in accordance with ISO 7010 can be affixed to the cover or directly next to it.
Duty Fulfilled,
Appearance Preserved
Seamless
integration
Easy
to retrofit
a striking design statement
Design for Functional Safety
The red fire extinguisher is one of the few objects in the room that no one chooses—but everyone has to see. It’s required by law, technically necessary, and often stands out visually in an otherwise well-thought-out interior design. The fire extinguisher design cover is the answer: not a replacement, not a compromise—but a complementary solution that seamlessly integrates this mandatory item into the space.
A technically necessary element becomes a subtle, high-quality component of your interior design, making it clear that safety is taken care of and that design doesn’t stop at the details. Those who consciously plan work environments can use the cover to integrate a technically required element into the space in a subtle, high-quality, and well-thought-out way.
Dimensions
The WINI fire extinguisher design cover is a three-sided folded sheet metal cover made of 2.5 mm thick steel sheet (S235JR), powder-coated, with a net weight of approximately 5.71 kg. Installation is tool-free via a keyhole mounting system, allowing the cover to be quickly removed in an emergency.
| Construction | Sheet metal cover with three-sided flanges |
| External Dimensions | Height 600 mm, width 270 mm, depth 179 mm |
| Internal Dimensions (usable) | Height 597 mm, width 265 mm, depth 176.5 mm |
| Material | S235JR sheet steel, 2.5 mm, powder-coated |
| Weight | approx. 5.71 kg |
| Installation | Keyhole mounting, 2 keyholes (Ø 16 mm), horizontal spacing 204 mm, vertical spacing 422 mm |
| Suitable for | Standard 6 kg, 6-liter fire extinguishers (Ø 150–160 mm, height 500–550 mm) |
| Not suitable for | 5 kg CO₂ extinguishers (height 650–750 mm, protruding nozzle) |
| Marking | No fire safety symbol integrated—attach the additional F001 pictogram in accordance with ISO 7010 to the cover or directly above it |
| Area of Use | Indoor use, e.g., narrow hallways, schools, commercial buildings |

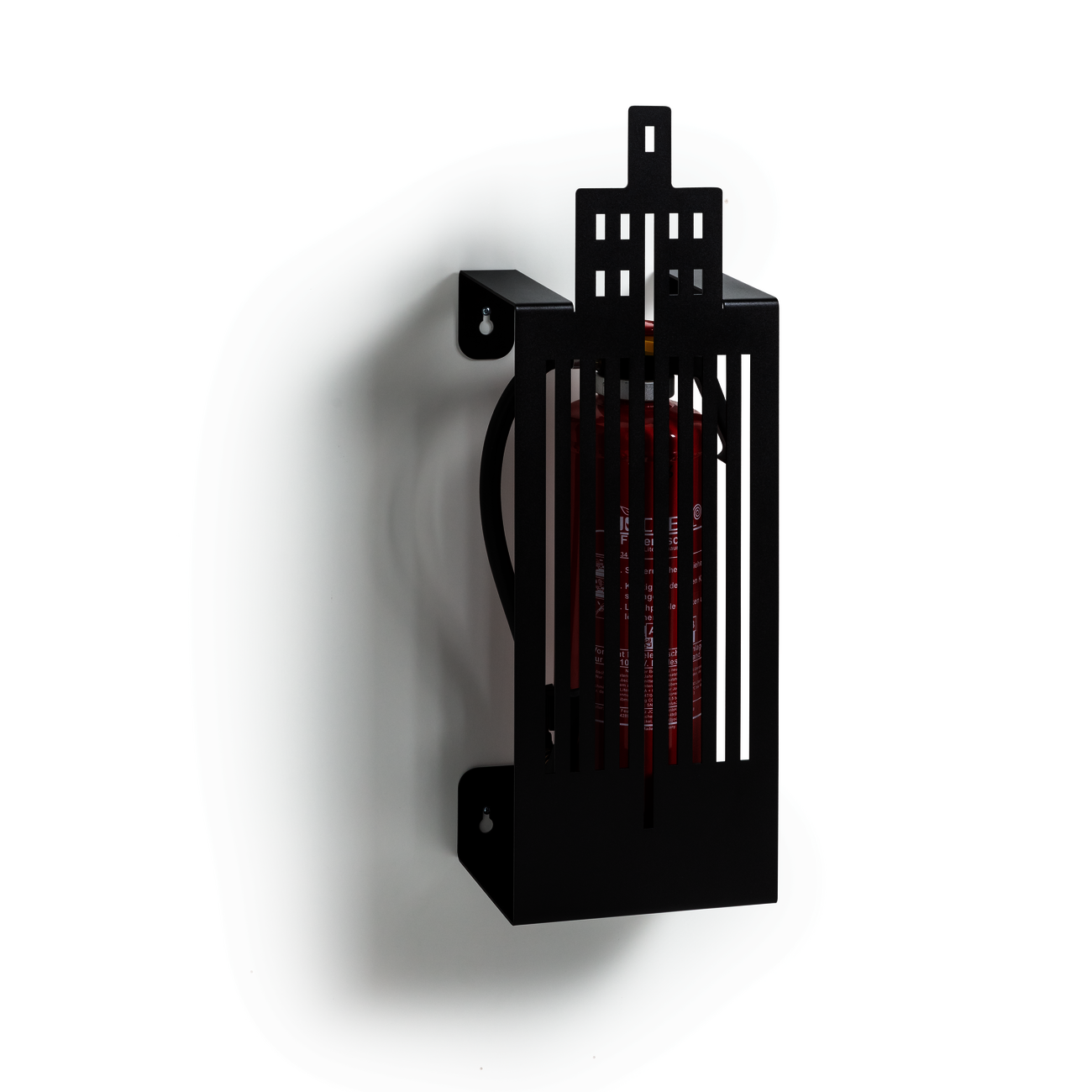

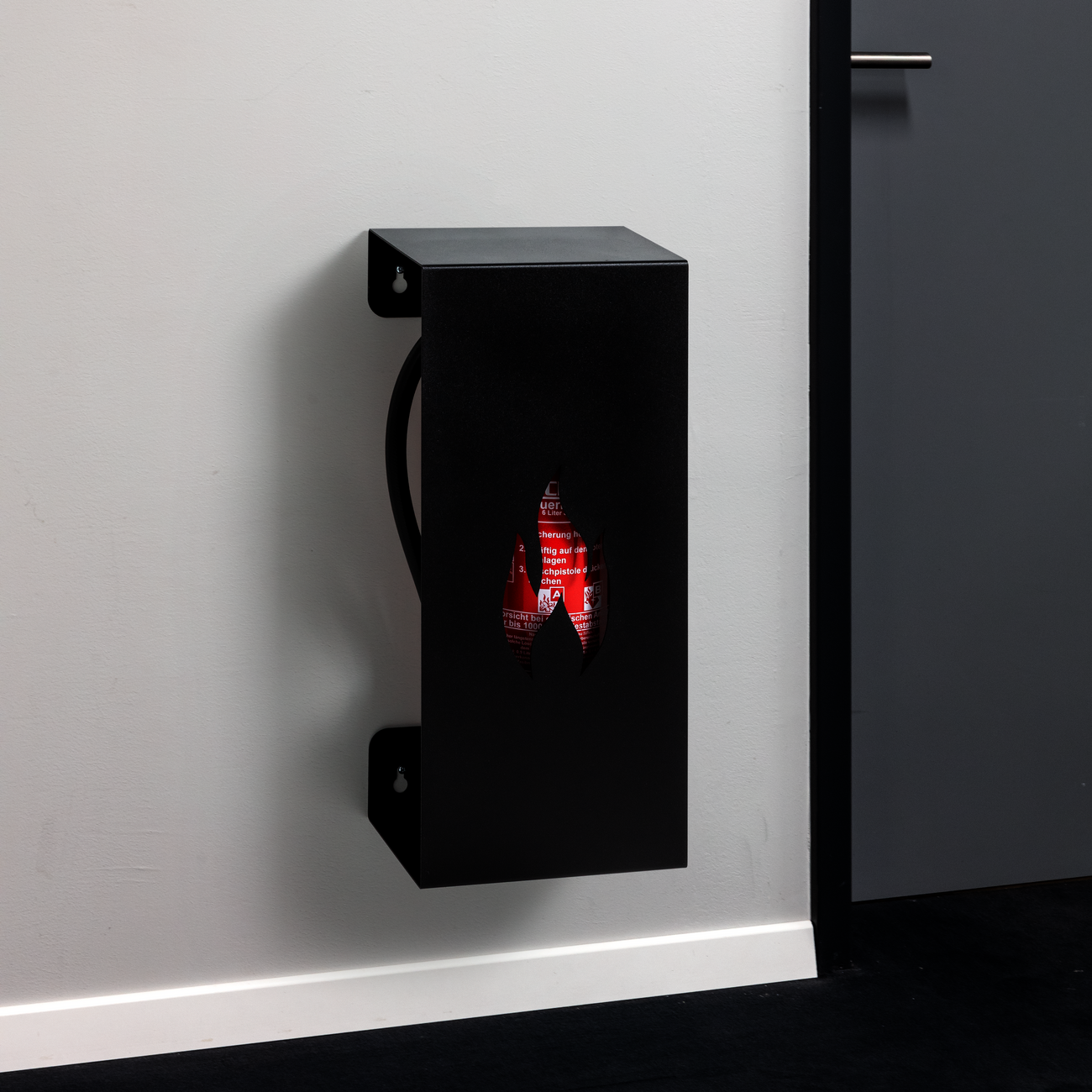

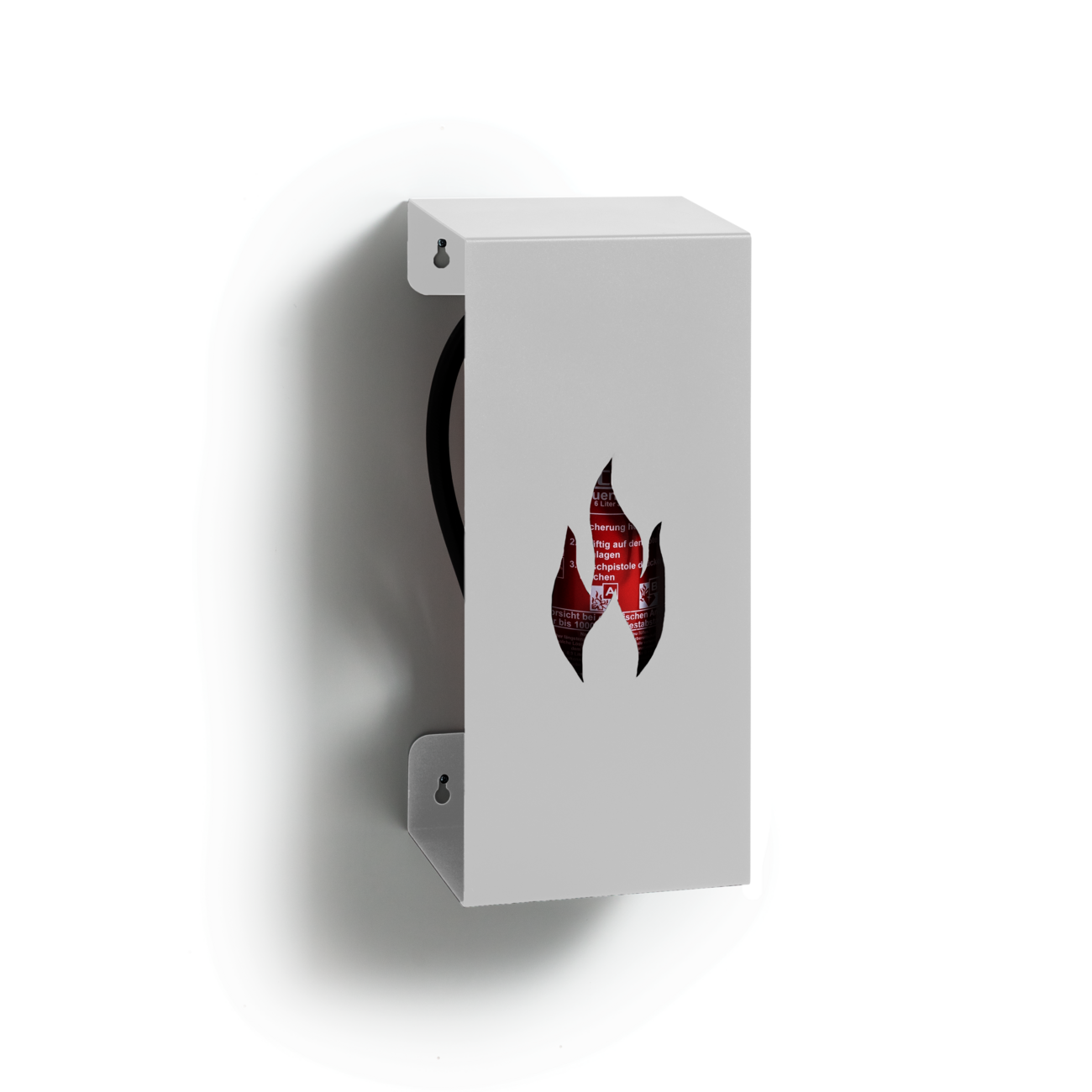

The laser-cut front opening varies depending on the motif (flame, house, pattern) and allows a partial view of the fire extinguisher behind it: The red color and the upper section with the extinguisher head and pressure gauge remain visible for regular visual inspections.
Thoughtfully Designed Down to the Last Detail
A well-designed space is important for several reasons:
- Concentration & Calm: A visually harmonious environment reduces unconscious distractions and creates a calmer work atmosphere
- Professional appearance: A well-designed environment conveys attention to detail and a commitment to quality—to employees, customers, and visitors alike
- Safety without compromise: Safety equipment doesn’t have to look out of place—it can be seamlessly integrated into the room’s design without sacrificing functionality
- No Choice, but Creative Freedom: The fire extinguisher is required by law. Where and how it is displayed is not—the cover gives you back that control.
- Order & Clarity: When safety requirements are harmoniously integrated into the space, a sense of structure and control emerges—which subconsciously influences the entire way of working
In the often hectic daily work routine, the designer fire extinguisher cover is an elegant solution that combines safety requirements with interior aesthetics—for work environments where both matter.
How will you design your workplace in the future?

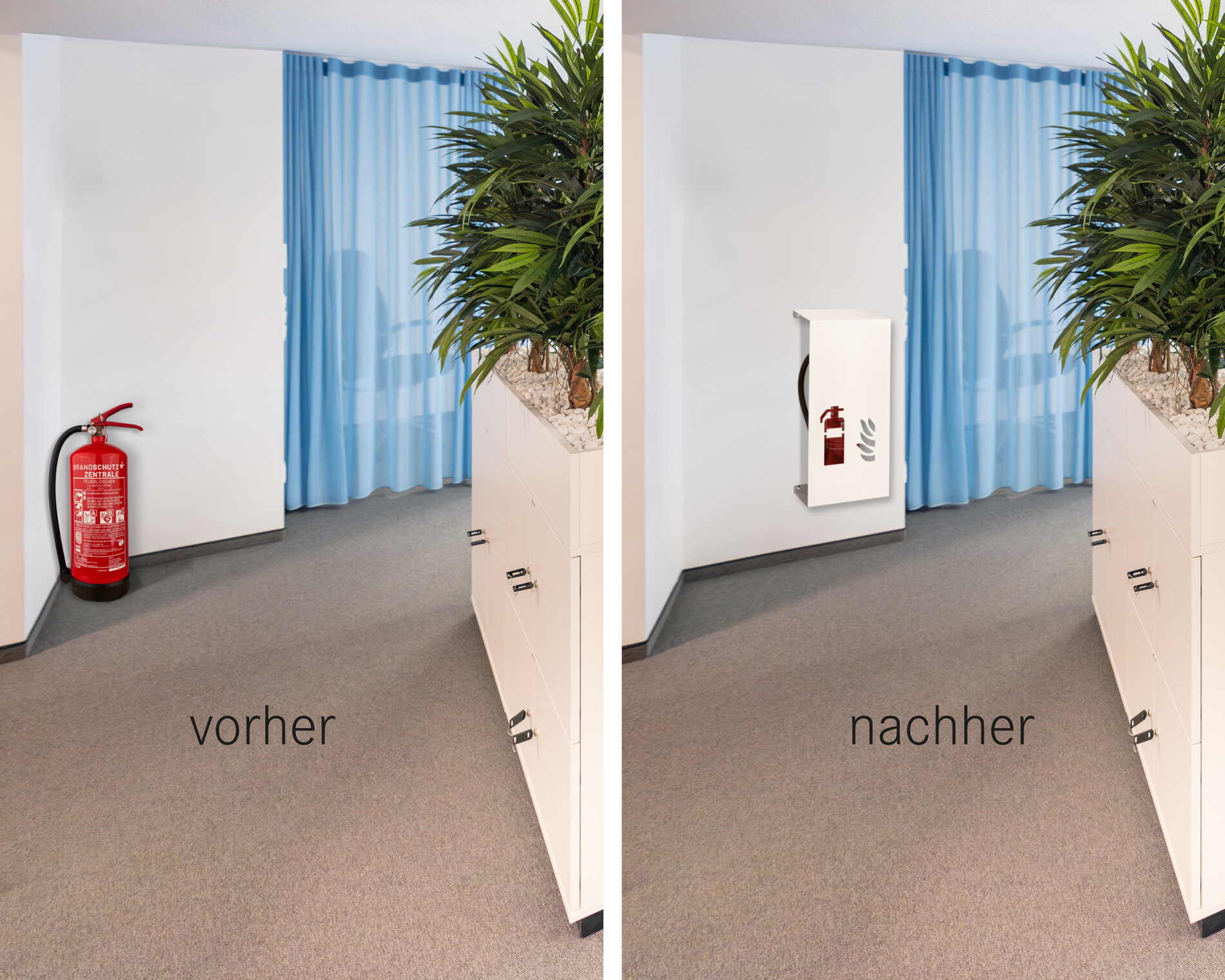

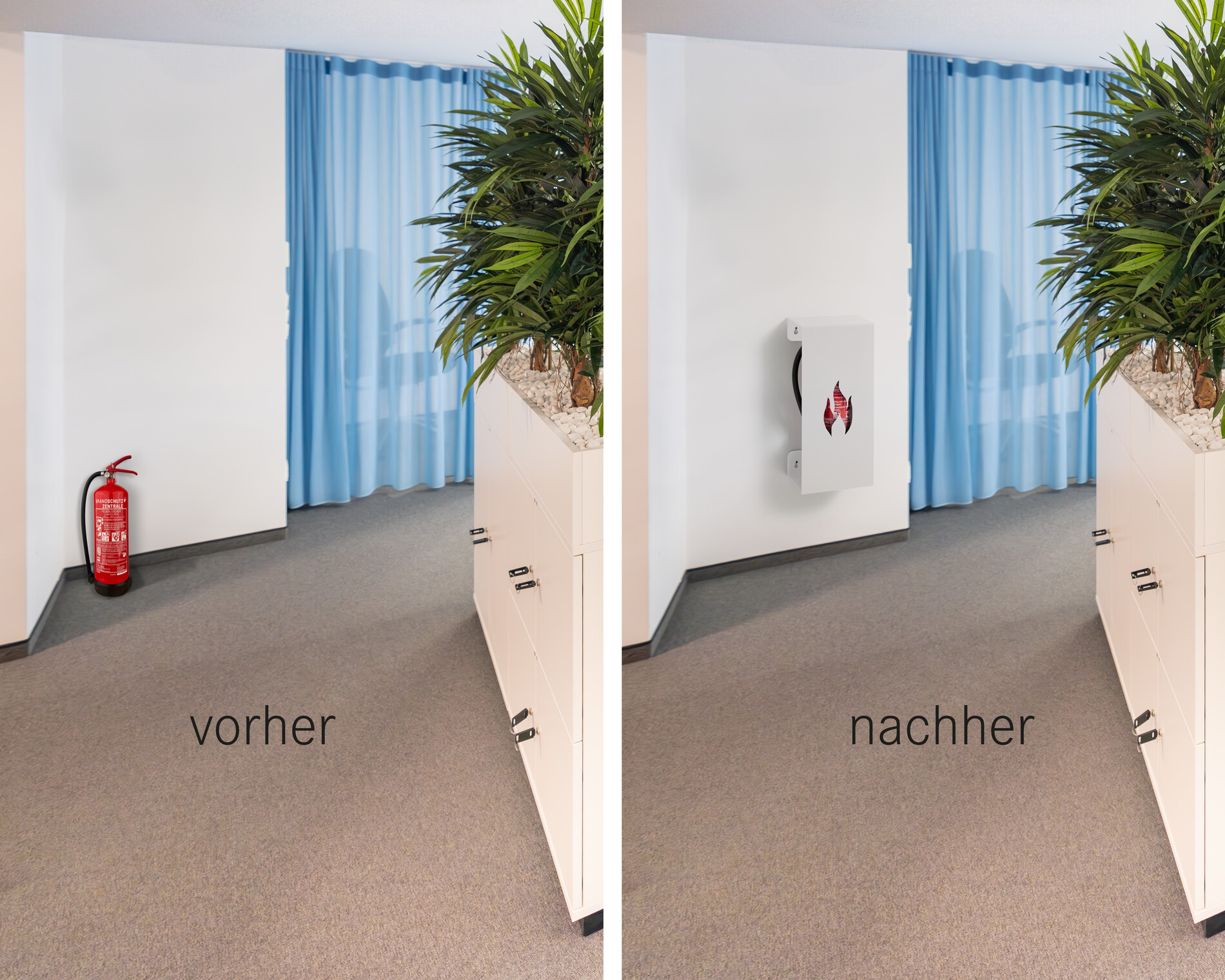

The red fire extinguisher stays—the question is simply how it’s perceived. The designer fire extinguisher cover is a straightforward add-on solution that can be integrated into existing interior designs even after the fact. Whether in a modern office, a prestigious reception area, or an open workspace: The cover integrates this mandatory item into the space in a subtle, high-quality, and thoughtful way—not by hiding it, but by incorporating it into the design.
Blue Angel | The Blue Angel is a German environmental label. For furniture made of wood and wood-based materials, it identifies low-emission products for indoor use and takes into account environmental and health requirements, among other factors. |
TÜV/GS | The GS mark stands for “Tested Safety.” It confirms that a ready-to-use product has been tested by an independent testing agency for safety requirements in accordance with the Product Safety Act. |
Quality Office | Quality Office is a quality label for office furniture. It evaluates products based on requirements for safety, ergonomics, functionality, flexibility, durability, sustainability, and accompanying service. |
FEMB LEVEL 3 | FEMB LEVEL is a European sustainability certification for office and commercial furniture. It evaluates environmental and social sustainability aspects throughout the product life cycle. Level 3 is the highest level within the LEVEL system. |
ISO 9001 | ISO 9001 is an international standard for quality management systems. It outlines requirements for structured processes to ensure and improve product and service quality. |
ISO 14001 | ISO 14001 is an international standard for environmental management systems. It helps companies systematically identify, manage, and continuously improve their environmental impacts. |
EMAS | EMAS is a European environmental management system. It requires companies to demonstrate verified environmental performance, maintain transparent documentation, and pursue continuous improvement. |
10-Year WINI Long-Term Warranty | For commercial customers, WINI provides a 10-year long-term warranty from the date of manufacture, provided the conditions of the WINI warranty statement are met. The warranty supports long-term use and investment security. |
10-Year WINI Backorder Guarantee | The WINI continued supply guarantee is valid for 10 years on all WINI products. It begins when the product is listed as a “continued supply” item in the WINI price lists. The guarantee ensures product functionality; an identical 1:1 replacement is not required. |
